The Industry Leading Cargo Tank Coating for Chemical & Product Tankers

MarineLINE® 784

Download Product Brochure

What is MarineLINE®

Key Coatings Benefits

  • MarineLINE® 784 from Advanced Polymer Coatings, is the premier cargo tank coating system available for chemical and product carriers, and the only high-performance lining that withstands all IMO approved chemical cargoes.
  • MarineLINE® is generally recognized as safe (GRAS) for food grade cargoes. MarineLINE® 784 coating complies with the FDA and all applicable food additive regulations.
  • More chemical resistance than stainless steel, phenolic epoxies, and zinc silicate coatings.
  • Superior resistance to acids, alkalis, and solvents; maximum versatility to carry CPPs, PFADs, Bio-Fuels, and Methanol.
  • Virtually non-permeable for assurance of product purity.
  • Superior bond strength and adhesion.
  • Very low VOC - 99 grams/L (0.80 lbs./gal.).
  • Excellent flex stressing.
  • Resistance to wear, abrasion and impact.
  • Thermal shock resistance -40°C to +150°C (-40°F to +302°F).

Key Performance Benefits

  • Shipowners generate strong return on investment (ROI).
  • Faster, easier, more efficient cleaning due to non-absorption, low surface energy, and smooth surface.
  • Inspection of tank coating application and curing by MarineLine professionals.
  • Easy tank cleaning with fewer slops, and fast drying.
  • Minor tank touch-up repairs are done easily.
  • ABS ISO 9001:2008 Certification.
  • MarineLINE® 784 is ABS Type Approved.

Operational Benefits

Greater Versatility in Switching Cargoes

Choose the right cargo tank coating — MarineLINE® — to take advantage of the greatest sequencing possibilities and the opportunity to carry the most profitable cargoes.

Cycle Diagram

Cargo Tank Coating ROI

marineline-roi-chart

This 5-year comparison of MarineLINE® versus Phenol Epoxy coatings shows the tremendous difference in Additional Return On Investment. Chart calculations are based on data accumulated from a number of tanker shipowners.

25,000 DWT Tanker, nine voyages per year @ $20,000 USD per day

  1. 3 less cleaning days per voyage than Phenol Epoxy (27 more sailing days)
  2. 50% less cleaning chemicals used
  3. 50% fewer slops
  4. MarineLINE® cargo tank coating is fully cured when leaving the shipyard, so additional income is earned as MarineLINE® can immediately carry all cargoes on the MarineLINE® resistance list.

A History of Performance

The MarineLINE® cargo tank coating has been applied to more than 700 maritime chemical and product tankers, covering over 10 million square meters of surface.

  • The majority of ships coated are over 8 years old with some over 15 years old.
  • MarineLINE® has been applied successfully in major shipyards around the world.
  • These tankers have carried thousands of different chemicals, including Acids, Caustics, Solvents, Inorganic Chemicals, and Edible Oils, with some tankers changing their chemical cargoes up to 85 voyages a year.
  • APC’s MarineLINE® coating withstands the stresses of twisting and bending in rough seas while resisting temperature extremes of the cold Baltic winters to the hot Middle East summers.

The MarineLINE 784® Solution Utilizes Polymer Technology

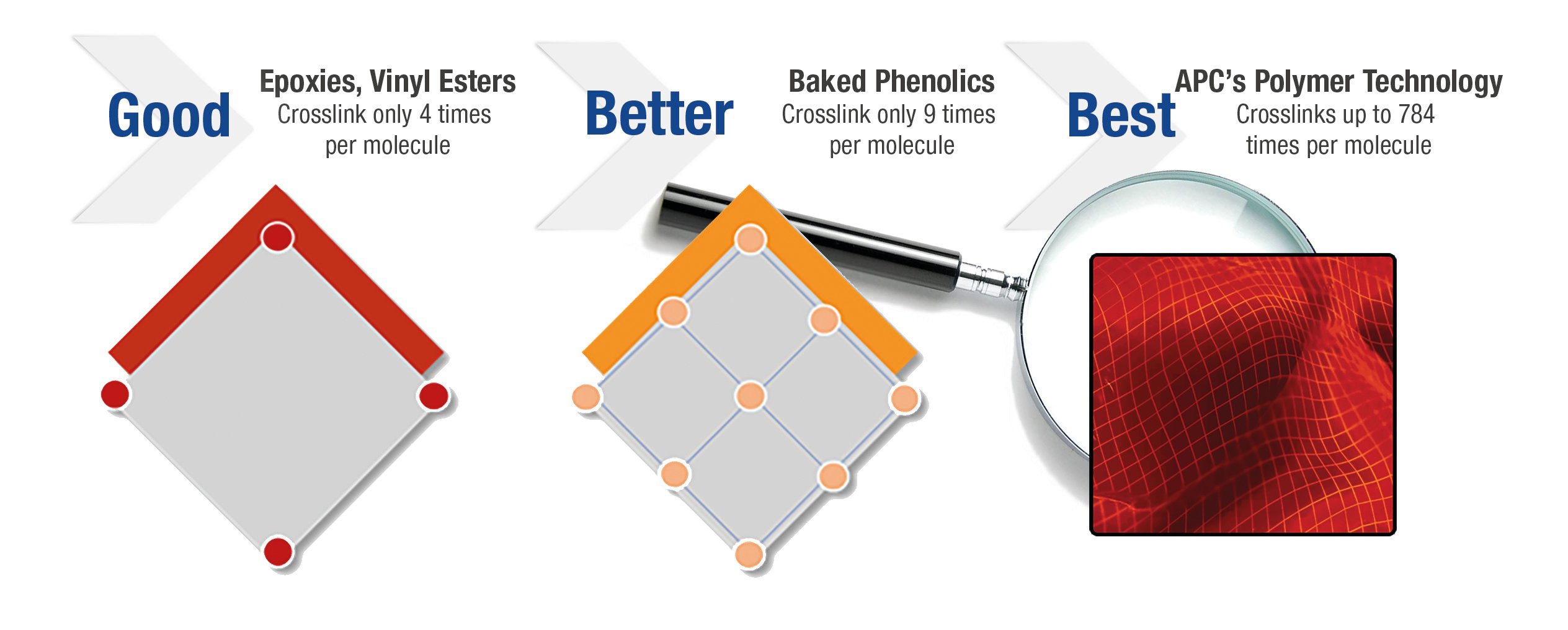

MarineLINE® 784 is formulated with a patented polymer, designed and engineered with high functional groups per molecule. When heat cured, MarineLINE® 784 coating forms three-dimensional, screen-like structures with up to 784 cross-links. This far surpasses Epoxies that only deliver two functional groups with only four cross-links.

This more densely cross-linked molecular structure delivers:

  • Higher Chemical Resistance
  • Higher Temperature Resistance
  • Higher Reactivity at Lower Temperature
  • Higher Resistance to Absorption
  • Greater Toughness
  • Faster Tank Cleaning
marineline-tank

The Greater the Distance Between the Cross-links, the Greater the Permeation Causing Chemical Attack and Absorption

MarineLine-cutaway


Compare Corrosion Resistance and Product Purity

This is only a Reference Guide

This is only a Reference Guide. This is an abbreviated listing of MarineLINE® capabilities. See the MarineLINE® Chemical Resistance Guide for full capabilities. The end user is responsible for determining if MarineLINE® is the appropriate coating for the specific application involved.

MarineLINE® 784 covers the widest range of chemicals carried by a marine cargo tank coating. This abbreviated list shows some of the corrosion resistance performance offered.

A = Good at ambient temperatures     L = Limited Service      N = Not recommended


MarineLINE® 784
Phenolic Epoxy
Stainless Steel
Inorganic Zinc
Acetic Acid
A
N
A
N
Acroleic Acid
A
N
A
N
Acrylic Acid
A
N
A
N
Acrylonitrile
A
N
A
A
Ammonium Sulphate
A
A
L
N
Azabenzene
A
N
A
N
Benzene
A
A
A
A
Benzene Carboxylic Acid
A
A
A
N
B-Methacrylic Acid
A
N
A
N
Bichromate of Soda
A
N
A
N
Biofuels
A
L
A
A
Butanoic Acid
A
N
A
N
Butyric Aldehyde
A
N
A
N
Calcium Hydroxide
A
A
A
N
Calcium Hypochlorite
A
A
A
N
Caustic Potash
A
N
A
N
Carbolic Acid
A
N
A
L
Coal Tar Oil
A
N
A
L
Colamine
A
N
A
-
Cresol
A
N
A
A
Detergents
A
A
A
N
Diethylamine
A
N
A
A
Diethyl Ether
A
N
A
A
Dimethylamide Acetate
A
N
A
N
Disulphuric Acid
A
N
A
N
Ethylene Dichloride (EDC) A L N N
EDTA
A
N
A
N
Ethanol A A A A
Ethanolamine
A
N
A
N
Ethonoic Acid Anhydride
A
N
A
N
Ethyl Acrylate
A
A
A
N
Fatty Acids
A
A
A
N
Formic Acid 10%
A
N
A
N
Glycerol
A
N
A
N
Heptanoic Acid
A
A
A
N
Hexahydro Aniline
A
N
A
L
HMDA
A
N
A
L
Isobutanol
A
N
A
N
Isobutyric Acid
A
N
A
N
Isopropyl Amine
A
N
A
N
Juices, Fruit
A
A
A
N
Liquid Pitch Oil
A
N
A
L
Maleic Anhydride
A
N
A
N
MCA
A
N
A
N
Methacrylonitrile
A
N
A
N
Methanol
A
N
A
A
MEK
A
L
A
A
Methylene Chloride
A
N
N
N
Mono Ethylene Glycol (MEG)
A
A
A
N
Nitrogen Fertilizers
A
A
A
N
Norval Amine
A
N
A
N
Octanoic Acid
A
A
A
N
Palm Oil Fatty Acid (PFAD)
A
A
A
N
Perchloroethylene
A
N
A
N
Phenol
A
N
A
A
Phosphoric Acid
A
N
L
N
Phthalic Anhydride
A
N
A
N
Piperazine
A
N
A
A
Polyethylene Polyamines
A
N
A
N
Potassium Hydroxide
A
A
L
N
Propionic Acid
A
N
A
N
Pyridine
A
N
A
N
Sodium Carbonate
A
N
N
N
Sodium Hydroxide
A
A
L
N
Sodium Sulfide
A
A
N
N
Stearic Acid
A
A
A
N
Styrene Monomer A L A A
Spent Sulfuric Acid
A
N
A
N
Sulfur
A
N
A
N
Sulphuric Acid
A
A
N
N
Sulphurous Acid
A
N
A
N
Tall Oil
A
A
A
N
Tallow
A
A
A
N
Tar Acid
A
N
A
N
Toluene
A
N
A
A
Valeraldehyde
A
N
A
N
Vinegar
A
N
A
N
Vitriol Oil 65%
A
N
A
N
Xylenol
A
N
A
A

Chemical Concentration

MarineLine-Chemical-Concentration-chart

Over the past 10 years of voyages of MarineLINE® coated vessels, the tanks have never had a contamination claim. As this chart illustrates, the cross-linked structure of MarineLINE® coating does not absorb the cargo, thus ensuring product purity, from port to port.


Coating Inspection & Heat Curing by APC

To ensure the performance of MarineLINE®, it is imperative that APC provides inspection services throughout the entire application process. APC focuses on the importance of good surface preparation, correct application, and proper heat cure, in a six-step approach. MarineLINE® has set the benchmark regarding heat curing, and spark testing the entire tank surface.

Step 1

Pre-Blast

MarineLine-step1

  • Weld & Grind Inspection
  • Staging
  • Dehumidification
  • Ventilation
  • Rain Protection
  • Surface Contamination Testing
  • Surface Protection

Step 2

Blasting

MarineLine-step2

  • Surface Profile
  • Surface Cleanliness
  • Environmental Conditions
  • Cleaning
  • Blasting
  • Visual Blast Inspection
  • Rejection of Blast Quality

Step 3

Spray Application

MarineLine-step3

  • Environmental Conditions
  • Mixing Thinners
  • Base Coat (shown above)
  • Stripe Coat
  • Top Coat

Step 4

Inspection

MarineLine-step4

  • Dry Film Thickness Test
  • Spark Test

Step 5

Heat Cure

MarineLine-step5

  • Equipment
  • Set-up
  • Charting
  • Curing

Step 6

Final Inspection

MarineLine-step6

  • Hardness Test
  • Solvent Wipe Test
  • Inspection Report Prepared

Insurance Warranty Through Helvetia Insurance

helvetia-logo

APC has joined forces with Helvetia Group, the Swiss-based insurer, to offer a specialized insurance program to warranty the application and performance of MarineLINE® cargo tank coatings.
This insurance program covers shipowners and operators on the MarineLINE® tank coating for a specified warranty period up to 5 years. With the Helvetia program, APC offers customers a true ‘turn-key’ solution for their cargo tank coating.

Operational Efficiencies of MarineLINE®

Long Service Life Potential

Taking care of your MarineLINE® cargo tank coating with proper cleaning and regular maintenance can provide years of profitable service. Well maintained MarineLINE® tanks have been in service 10+ years, and are still performing well. The following UNRETOUCHED photographs of tankers at various inspection intervals provide some insight into the performance of MarineLINE®. For some tanks, minor coating repairs have been made using the MarineMEND Repair system (see below).

marineline-longevity

Easy Cleaning

MarineLINE® 784 has an ultra-smooth, glossy, low energy surface that reduces venting time, uses less cleaning chemicals and less fuel/energy for cleaning equipment, and leads to faster turnaround.

A wide range of approved cleaning detergents and chemicals can be used to clean and prepare the coating for next cargoes allowing the shipowner/operator to maintain the coating with minimal effort.

A number of shipowners have provided examples of their MarineLINE® cleaning practices which APC readily shares with others upon request. A properly cleaned and maintained MarineLINE® cargo tank coating should provide excellent service for many years.

Simple Coating Repair for Small Areas

The MarineMEND Repair System Kit is designed for minor repairs of MarineLINE® coated cargo tanks. The repair procedure can be used when the coating has minor mechanical damage.

marineline-marinemend

(Top) MarineMend coating repair in progress. (Below) Finished repair.
